Product Specifications
|
Parameter |
Value |
|
Pump Body Material |
316L, Optional: 2205, TC4, C276, PEEK |
|
Working Pressure |
2-10 Bar |
|
Flow Rate |
0.3-8 L/min |
|
Power Supply |
DC12-24V |
|
Suction Lift |
1-3 m |
|
Working Temperature |
0-60℃ |
|
Special Features |
Self-priming, pressure relief and return structure |
|
Port Customization |
Available on request |
Engineered for Spray Systems with Corrosive Fluids

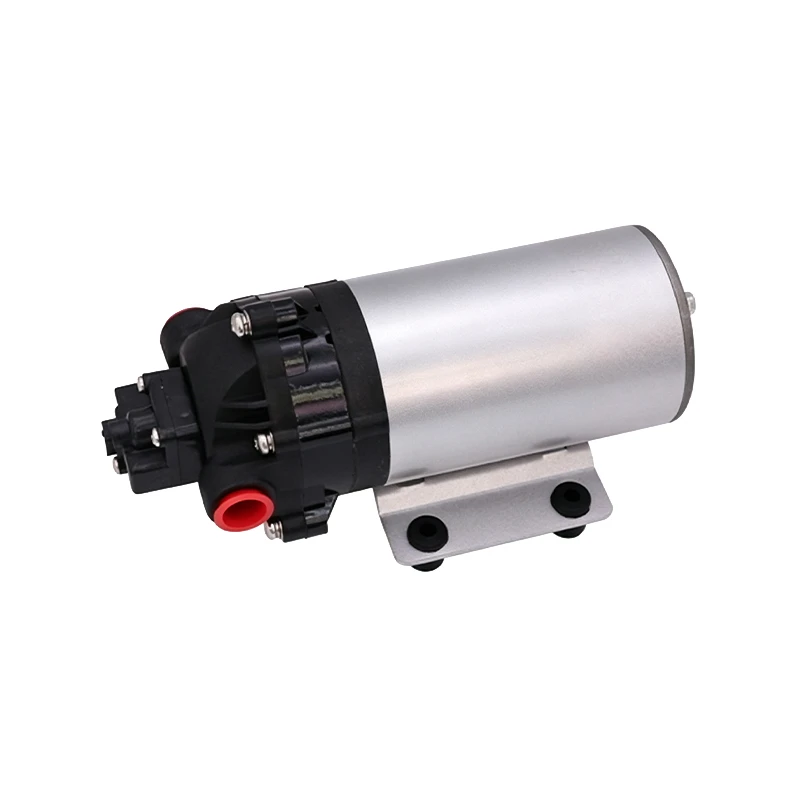

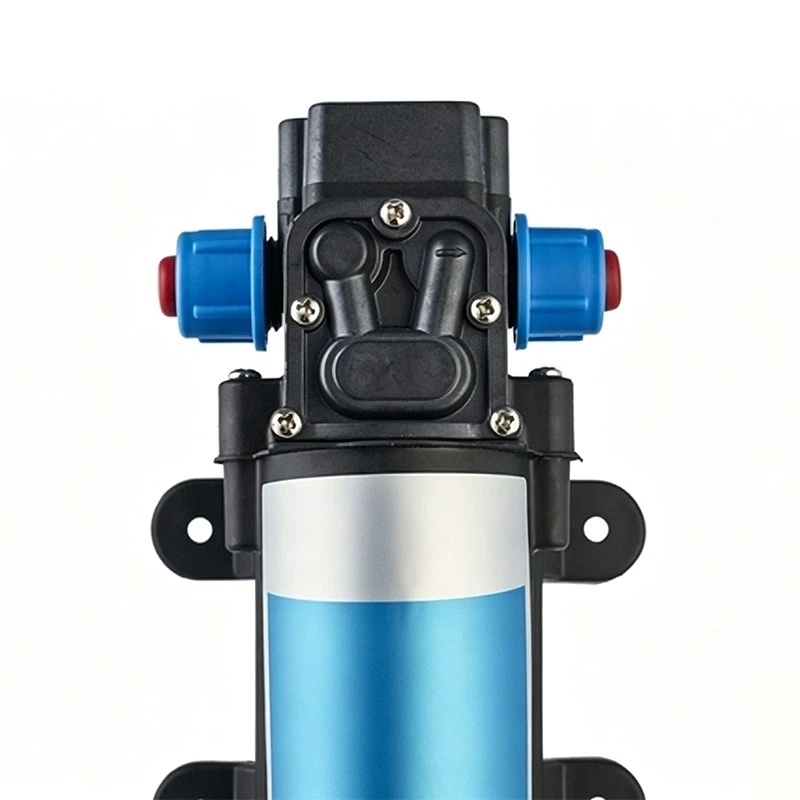

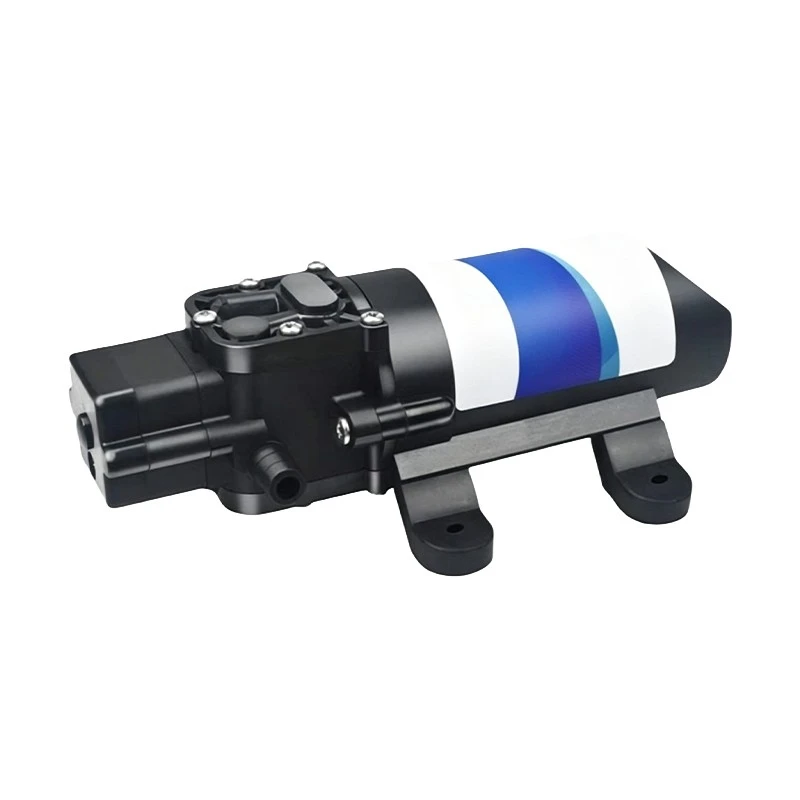

This micro high-pressure diaphragm sprayer pump is built for spray applications that require chemical resistance and steady pressure. The pump head is available in three material options: 316L stainless steel for general chemical resistance, PP plastic for cost-effective corrosion resistance, and PTFE for aggressive chemical service. The pump body is machined from solid round bars from well-known domestic mills. Our precision CNC workshop handles the machining. This gives the pump better dimensional accuracy and a smoother surface finish than cast or molded pump bodies.
-
Pressure and Flow for Spray Nozzles
The pump delivers a working pressure of 2 to 10 Bar. The flow rate is adjustable from 0.3 to 8 L/min. This pressure range is suitable for most industrial spray nozzles and atomizers. The pump runs on DC12V to 24V power. This low-voltage input makes it safe for use in wet environments and portable equipment. The suction lift is 1 to 3 meters. The pump is self-priming. You do not need to fill the suction line with liquid before starting the pump. This simplifies system startup and reduces operator errors.
-
Safety Features Built into the Pump
This spray pump includes a pressure relief and return structure. If the spray nozzle becomes blocked, the system pressure rises. The internal relief valve opens and returns the fluid to the inlet side. This protects the pump and the downstream piping from over-pressure damage. The pump can operate continuously in this bypass mode for a limited time without damage. The operating temperature range is 0 to 60°C. This covers most ambient and fluid temperatures in spray applications. The pump is not designed for high-temperature or cryogenic service.
Custom Port Connections Available
We support custom port sizes and thread types for this micro spray pump. You can specify the connections that match your existing piping. This saves you from buying adapters or modifying your hose assemblies. We can also change the pump's mounting bracket position to fit your equipment layout. The pump is compact in size, which allows for easy installation in tight spaces. We offer samples for testing. Our technical team can help you select the right material and port configuration for your specific spray system.
